Chuangyu’s export division specializes in supplying spare parts for major refrigeration and cooling equipment brands. Whether you require chiller components, HVAC parts, compressors, fan motors, pumps, valves, control boards, flow sensors, screw chiller oil, or oil filters to restore equipment operation, we make sourcing them easy—just a phone call or email away.

HANBELL Oil Filter 32302

HANBELL Oil Filter 32302
Brand:Hanbell
Name:Oil Filter
Model:32302
Application:Installed on shared oil supply pipelines of multiple compact screw units to conduct uniform fine purification of circulating lubricant oil.
+8617837317879
8617837317879
amelia@chillerpartsupply.com
Contact Us

Products

Product Introducion

1. Customized small-diameter low-flow structure: Optimized the folding height and mesh density, suitable for the oil circuit system shared by multiple small compressors, avoiding the problem of insufficient oil supply from a single unit during parallel operation due to excessive flow resistance.

2. Independent multi-level protection function: Can isolate the impurity circulation between multiple compressors, preventing the wear debris generated by a faulty unit from spreading to the entire shared oil circuit, thereby avoiding damage to other operating compressors.

3. Fully welded metal structure, zero pollution design: No need for chemical adhesives to fill materials, can resist long-term corrosion of high-temperature aged refrigerating oil and various refrigerants, avoiding secondary pollution of the system due to the detachment of the adhesive layer.


Products

Product Parameters

ItemSpecification
Model32302 Small External Parallel Oil Filter Element
Filter MediumMulti-layer folded 304 stainless steel corrugated mesh
Filtration Precision3–20μm liquid oil fine filtration
Structural CraftFull metal argon welding, glue-free, thin reinforced inner support tube
Matching Flow ScopeLow-flow shared oil circuit for small parallel screw compressors
Compatible Working MediaR22, R134a, R404A, R507, R245fa; mineral oil & POE synthetic refrigeration oil
Operating Temperature Range-30℃ ~ +100℃
Max Working Pressure210 bar
Standard Continuous Service Hours1000–1800 h
Installation FormFlange inserted mounting, matched with dedicated flat sealing gasket


Products

Product Display

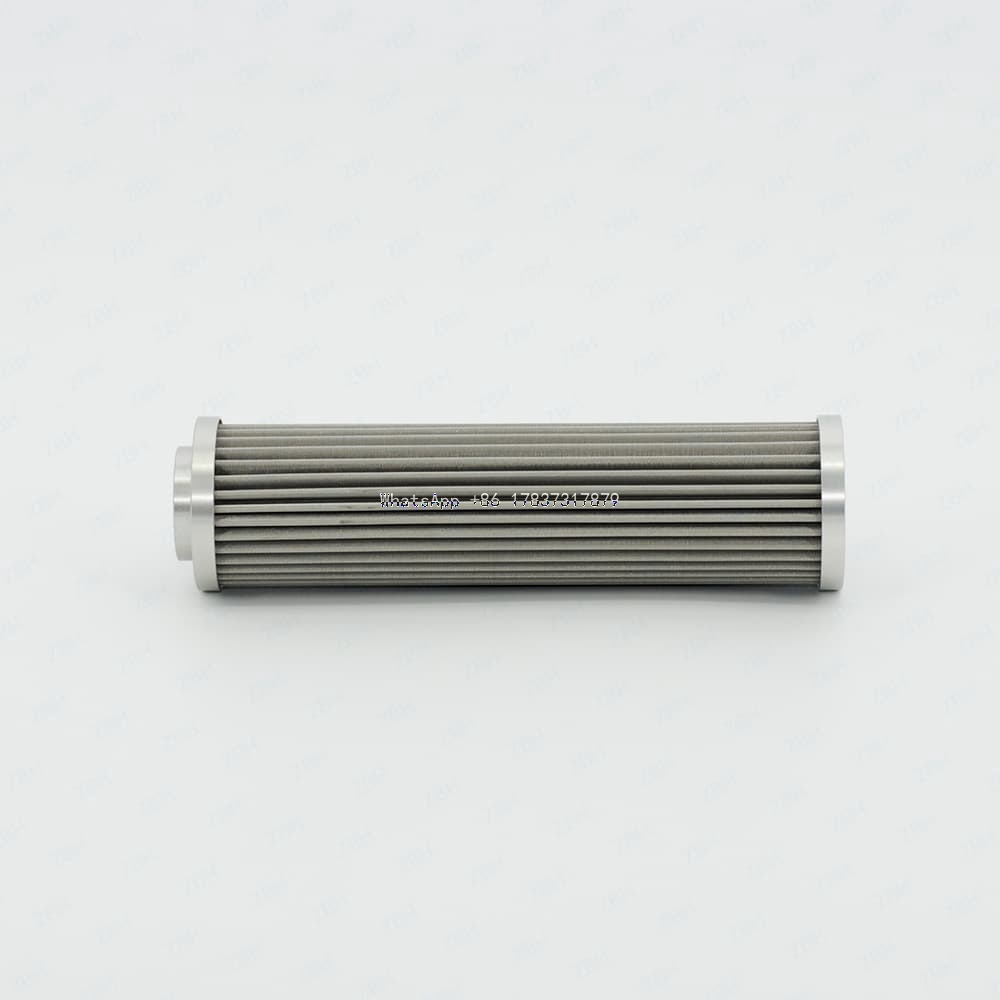

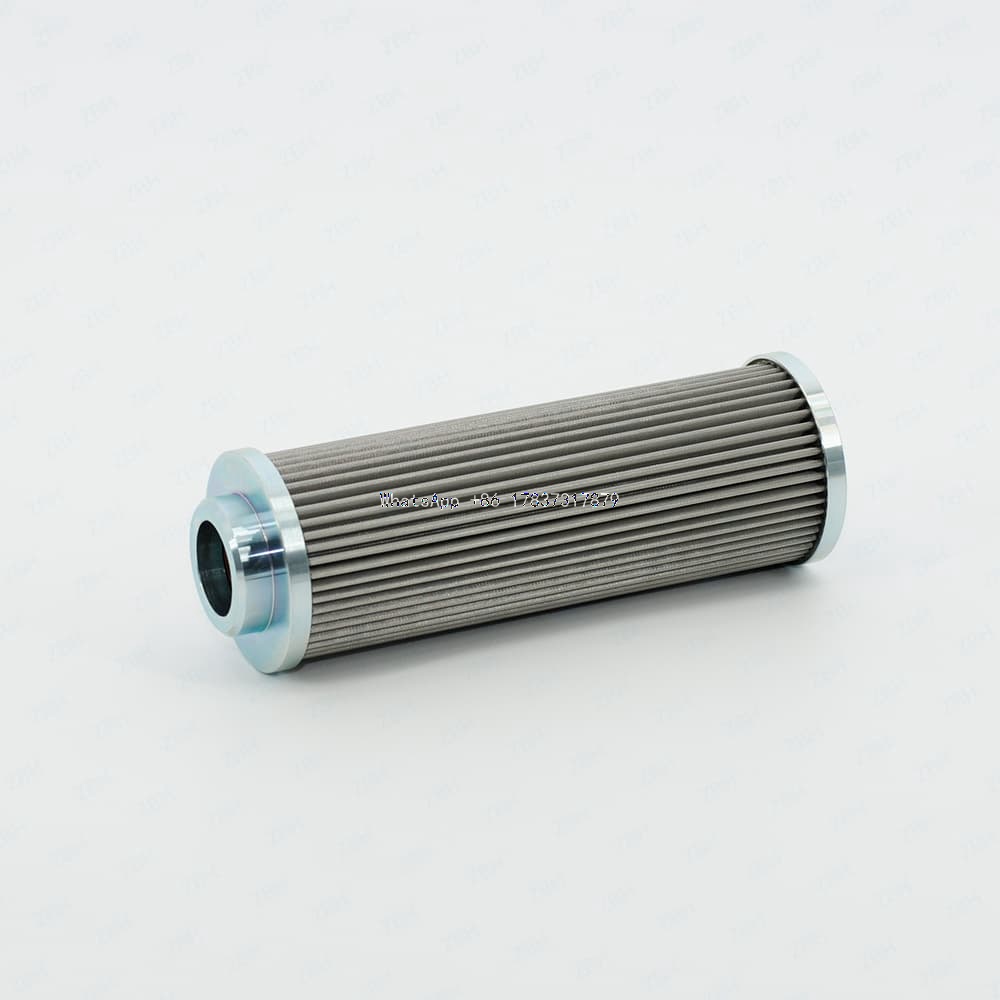

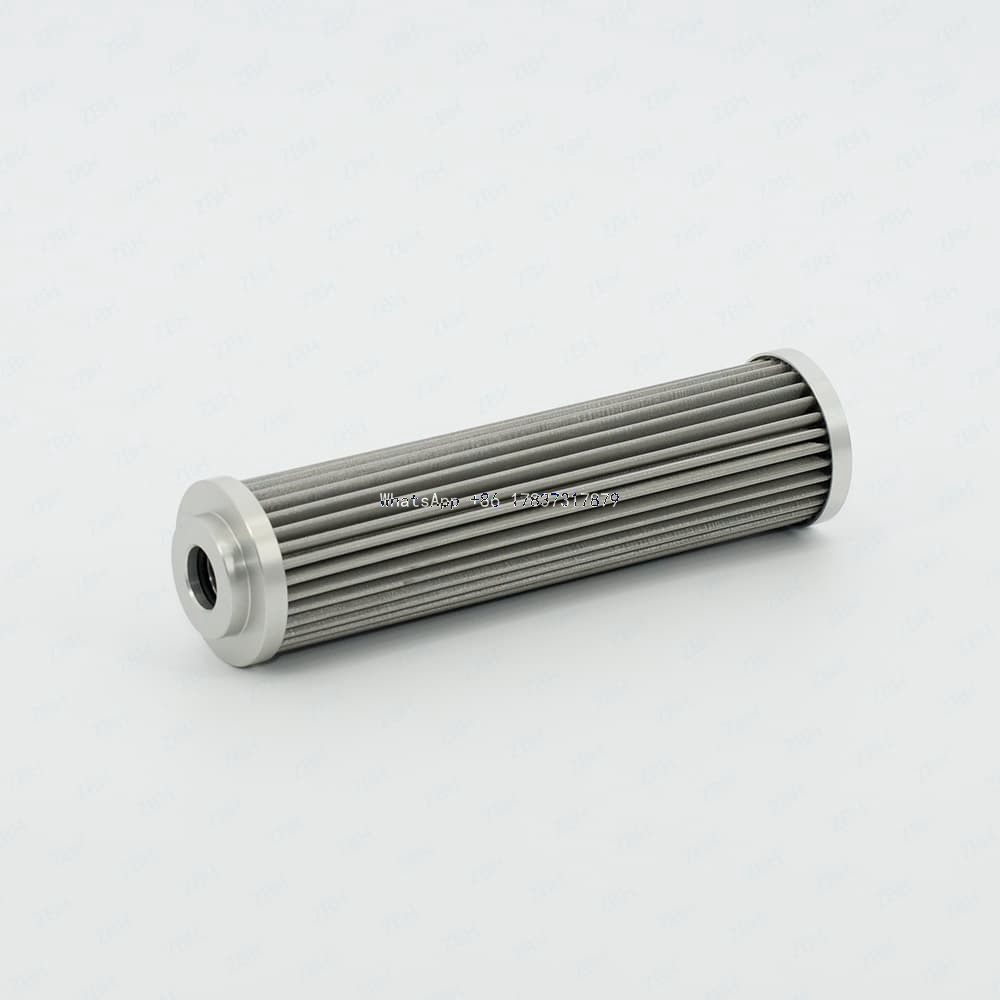

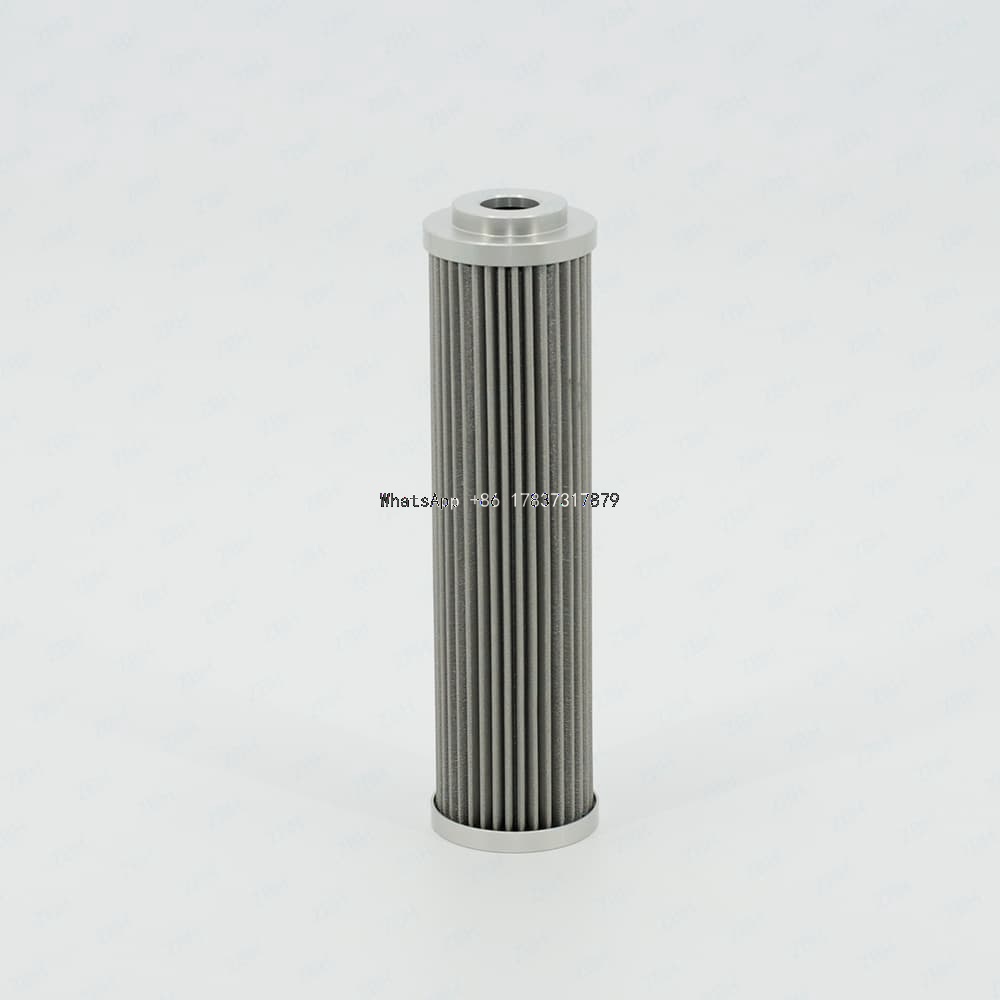

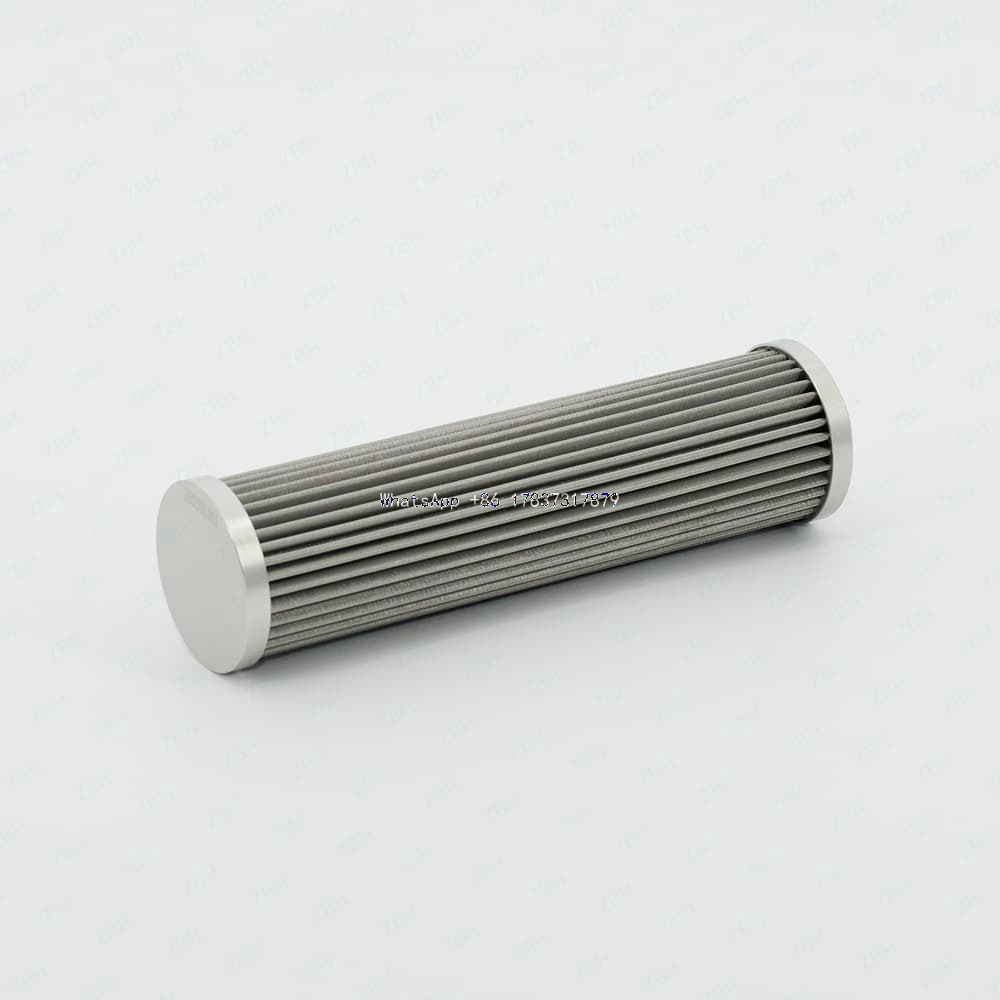

HANBELL Oil Filter 32302

HANBELL 32302


HANBELL Oil Filter 32302

HANBELL 32302


HANBELL Oil Filter 32302

HANBELL 32302


HANBELL Oil Filter 32302

HANBELL 32302


Oil Filter

4212-84  /  4212-GB15  /  31301  /  32302  /  32303  /  31305  /  31307  /  ZF3033A

Suction Filter31301  /  31303  /  31305  /  31307  /  31331  /  31358  /  32311

HANBELL Oil Filter 32302


HANBELL Oil Filter 32302


HANBELL Oil Filter 32302


HANBELL Oil Filter 32302



Products

Company Show

We offer technical support including refrigeration parts parameter matching, model selection and installation guidance. We help customers quickly solve problems of parts adaptation and system commissioning to avoid equipment failures caused by wrong selection.

HANBELL Oil Filter 32302

HANBELL Oil Filter 32302

HANBELL Oil Filter 32302

HANBELL Oil Filter 32302


Products

FAQ

A:

Normally needs 5-7working days. If quantity is large or need to customize, please confirm with us before order.

A:

Please send us the model number of the product you need. We will generate an online order and it will be sent to your address via courier service at that time.

A:

All of our products are guaranteed to be genuine and original. Before leaving the factory, we conduct detailed inspections on each product.

A:

Telegraphic Transfer(T/T); Letter of Credit(L/C); Paypal,Alipay,Alibaba Online

A:

By Sea: Suitable for large volume. Cheap and safe, but slow.
By Air: Suitable for urgent order. More safe and fast.
By Express: Such as DHL, TNT, Fedex, UPS...Customs clearance included and sent to door, very convenient.
