CARR*IER WB12BE016 High‑Pressure Switch

  • CARR*IER WB12BE016 High‑Pressure Switch
  • CARR*IER WB12BE016 High‑Pressure Switch
  • CARR*IER WB12BE016 High‑Pressure Switch

CARR*IER WB12BE016 High‑Pressure Switch
Brand:CARR*IER
Name:High‑Pressure Switch
Model:WB12BE016
Stock:In Stock
Customized:OEM/ODM
Min. Order: 1 pcs
Package: Original packaging / Customized packaging
Application:high‑capacity 30HXC, 30XW water‑cooled screw chiller
+8617837317879
8617837317879
amelia@chillerpartsupply.com
Contact Us

Products

Product Introducion

  • Factory-calibrated non-adjustable manual reset high-voltage protection device.

  • Pre-wired integrated cable, directly inserted for replacement, no additional on-site wiring required.

  • Monitor the refrigerant pressure in the compressor's exhaust; cut off the control circuit when the pressure exceeds the set action point.

  • After troubleshooting, the reset button must be manually pressed to restart the equipment.

  • Copper exhaust connection, specifically for R134a refrigeration circuit.

  • The appearance is the same as WB12BE013, but the pressure setting point is different and cannot be interchanged.

Products

Product Parameters

ItemParameter
Full Part NoHK06UB006，replaced by 30GT660018
FunctionOil differential pressure switch with builtin timedelay relay
Trip Differential Pressure0.21 MPa (30 PSI)
Factory Preset Delay Time60-90 seconds
Capillary Tube Length1.8 m copper capillary tube
Port Connection1/4" SAE flare
Contact Rating24-240V AC control circuit
Working MediumCentrifugal compressor lubrication oil
Medium Temperature-20℃ ~ +105℃
AccessoryMounting gasket included
Net Weight≈0.65 kg


Products

Product Display


Carrier High‑Pressure Switch WB12BE016 (4)

CARR*IER WB12BE016

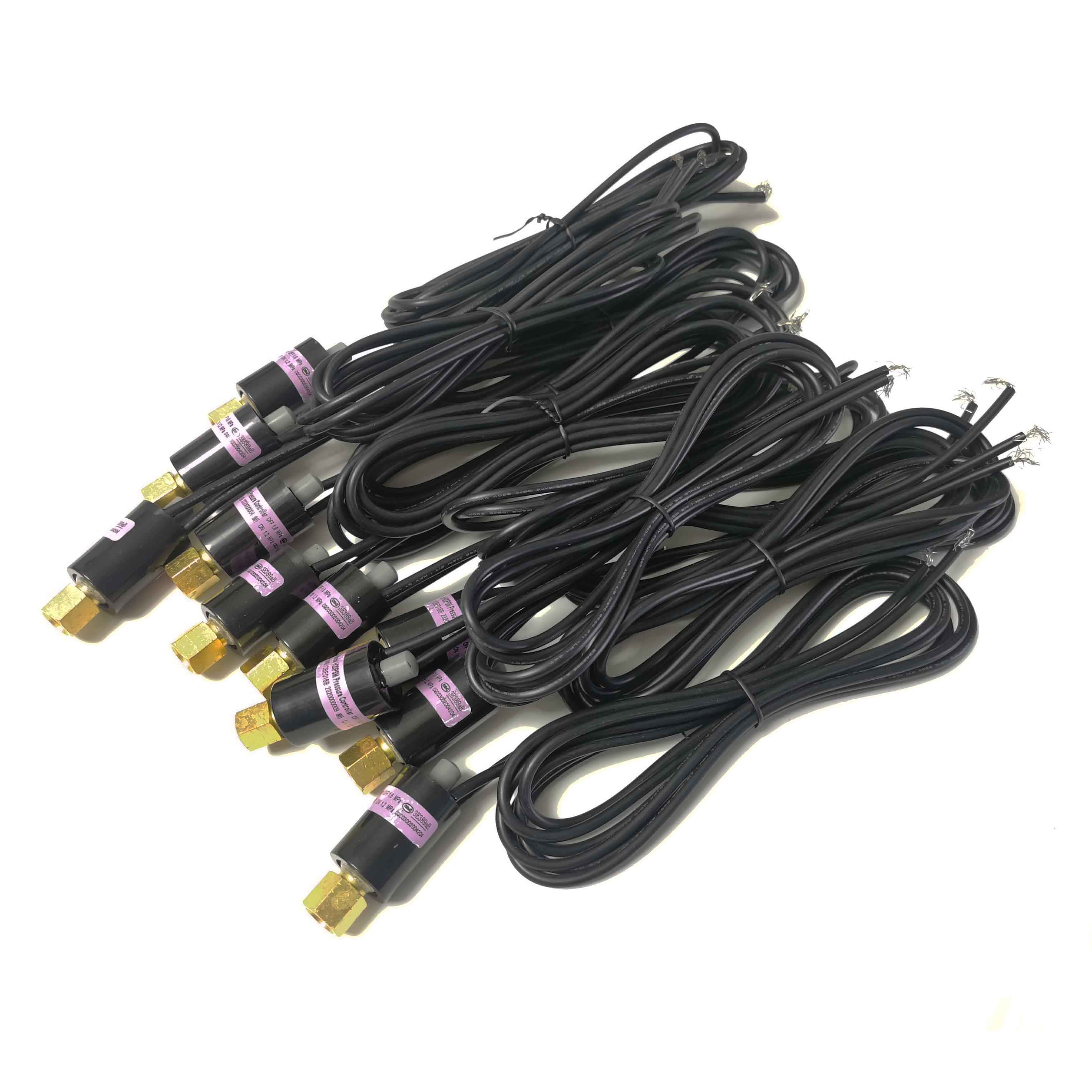

Carrier High‑Pressure Switch WB12BE016 (6)

CARR*IER WB12BE016

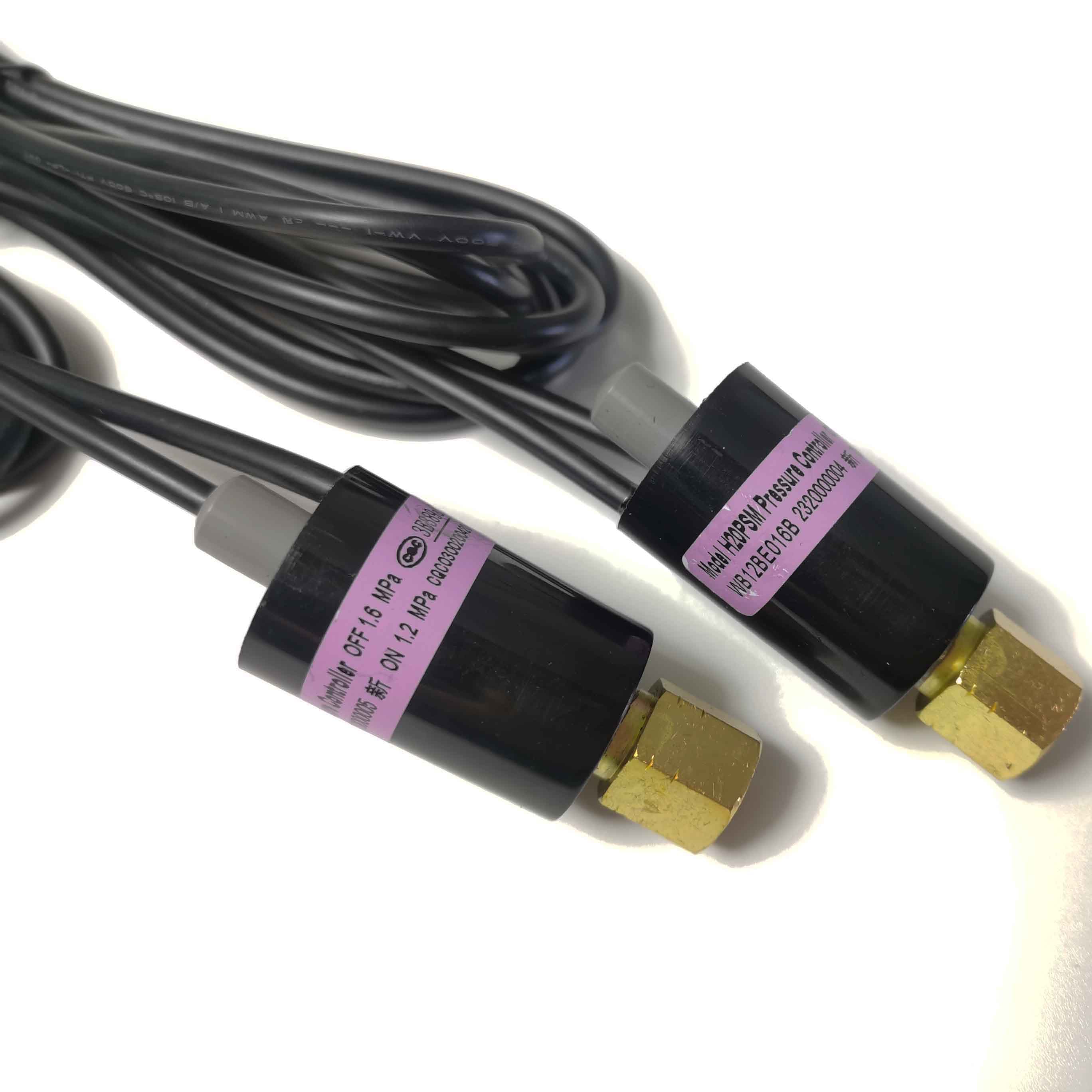

Carrier High‑Pressure Switch WB12BE016 (5)

CARR*IER WB12BE016

Carrier High‑Pressure Switch WB12BE016 (1)

CARR*IER WB12BE016


Keywords for Carr*ier HVAC Valve:

carri*er hvac parts,carr*ier hvac supply,carr*ier hvac replacement parts,hvac switch,flow switch hvac,low pressure switch hvac,safe t switch hvac
