Chuangyu’s export division specializes in supplying spare parts for major refrigeration and cooling equipment brands. Whether you require chiller components, HVAC parts, compressors, fan motors, pumps, valves, control boards, flow sensors, screw chiller oil, or oil filters to restore equipment operation, we make sourcing them easy—just a phone call or email away.

CARR*IER 00PPG000012100A Suction Low Pressure Transducer Sensor

  • CARR*IER 00PPG000012100A Suction Low Pressure Transducer Sensor
  • CARR*IER 00PPG000012100A Suction Low Pressure Transducer Sensor
  • CARR*IER 00PPG000012100A Suction Low Pressure Transducer Sensor
  • CARR*IER 00PPG000012100A Suction Low Pressure Transducer Sensor

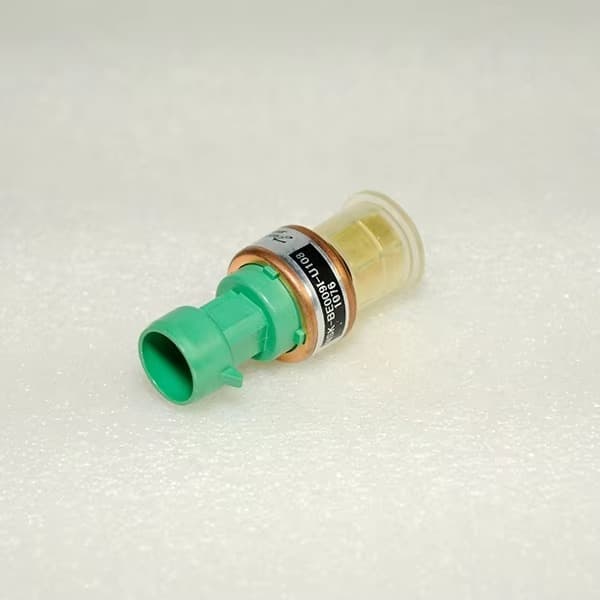

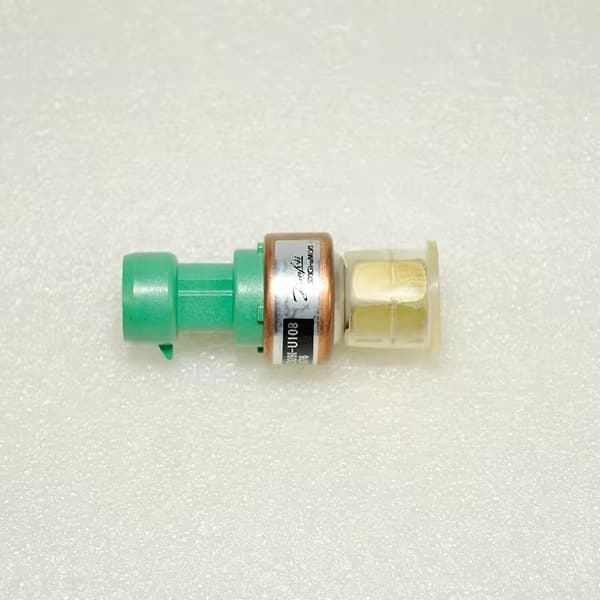

CARR*IER 00PPG000012100A Suction Low Pressure Transducer Sensor
Brand:CARR*IER
Name:Pressure Transducer Sensor
Model:00PPG000012100A
Stock:In Stock
Customized:OEM/ODM
Min. Order: 1 pcs
Package: Original packaging / Customized packaging
Application:for Carrier 30XA / 30XW / 30XQ liquid screw chillers.
+8617837317879
8617837317879
amelia@chillerpartsupply.com
Contact Us

Products

Product Introducion

  • The overall forged brass pressure valve body has excellent fatigue resistance and maintains structural stability under long-term system pressure fluctuations.

  • Standard M14×1.5 metric external threads can directly match the original cold water machine pressure connector without the need for adapter conversion.

  • The green injection molded three-core quick-connect connector is equipped with a lock扣， effectively preventing contact failure caused by equipment operation vibration.

  • An independent signal conditioning circuit is built-in， ensuring stable signal output even in the event of unstable on-site power supply.

  • The brass surface is laser-engraved with the complete part number and internal model code. It is packaged in a single independent moisture-proof plastic bag.

Products

Product Parameters

ItemTechnical Parameter
Part CodeOP12DA040 (HK05YZ001 interchangeable)
Contact MediumHFC refrigerants + mineral / POE lubricant oil
Calibrated Measuring Span0 ~ 12 Bar absolute pressure
Analog Output Curve0.3 ~ 4.7 VDC proportional ratiometric signal
Excitation Supply Voltage5 VDC ±0.2V stabilized power supply
Comprehensive Accuracy±0.65 FS% (linearity + hysteresis + repeatability included)
Pressure ConnectionM12×1.0 male brass threaded port
Electrical Protection RatingIP67 dustproof & water splash resistant
Sensing Diaphragm304 stainless steel anti-corrosion thin film
Internal Seal MaterialHigh-temperature resistant FKM fluororubber
Continuous Ambient Temp Range-38℃ ~ +110℃
Max Medium Contact Temperature95℃
Built-in Circuit ProtectionReverse polarity protection + transient surge suppression
Net Single Unit Weight60g compact brass integrated housing
Matching EquipmentCarrier 30GX, 30HXC, 30GNP screw chillers & modular heat pumps


Products

Product Display


CARR*IER 00PPG000012100A Suction Low Pressure Transducer Sensor

CARR*IER 00PPG000012100A


CARR*IER 00PPG000012100A Suction Low Pressure Transducer Sensor

CARR*IER 00PPG000012100A


CARR*IER 00PPG000012100A Suction Low Pressure Transducer Sensor

CARR*IER 00PPG000012100A


Keywords for CARR*IER Sensor:

carr*ier sensor,carr*ier transducer,carr*ier temperature sensor,carr*ier high pressure switch,carr*ier pressure transducer,carr*ier temp sensor

CARR*IER 00PPG000012100A Suction Low Pressure Transducer Sensor

Products

Company Show

We offer technical support including refrigeration parts parameter matching, model selection and installation guidance. We help customers quickly solve problems of parts adaptation and system commissioning to avoid equipment failures caused by wrong selection.


CARR*IER 00PPG000012100A Suction Low Pressure Transducer Sensor



Products

FAQ

A：

Normally needs 5-7working days. If quantity is large or need to customize, please confirm with us before order.

A：

Please send us the model number of the product you need. We will generate an online order and it will be sent to your address via courier service at that time.

A：

All of our products are guaranteed to be genuine and original. Before leaving the factory, we conduct detailed inspections on each product.

A：

Telegraphic Transfer(T/T); Letter of Credit(L/C); Paypal,Alipay,Alibaba Online

A：

By Sea: Suitable for large volume. Cheap and safe, but slow.
By Air: Suitable for urgent order. More safe and fast.
By Express: Such as DHL, TNT, Fedex, UPS...Customs clearance included and sent to door, very convenient.
