CARR*IER HH79NZ031 Temperature Sensor For Centrifugal Chiller

  • CARR*IER HH79NZ031 Temperature Sensor For Centrifugal Chiller
  • CARR*IER HH79NZ031 Temperature Sensor For Centrifugal Chiller
  • CARR*IER HH79NZ031 Temperature Sensor For Centrifugal Chiller

CARR*IER HH79NZ031 Temperature Sensor For Centrifugal Chiller
Brand:CARR*IER
Name:Temperature Sensor
Model:HH79NZ031
Stock:In Stock
Customized:OEM/ODM
Min. Order: 1 pcs
Package: Original packaging / Customized packaging
Application:Specially designed for Carrier 30GT air-cooled screw heat pump and 30HXC water-cooled chillers.
+8617837317879
8617837317879
amelia@chillerpartsupply.com
Contact Us

Products

Product Introducion

  • Connect the pipeline temperature signal to the temperature control well to collect the temperature signals of the cold water supply and return water.

  • Transmit standard 10K NTC resistance data to the main controller of the centrifugal unit.

  • Realize compressor capacity adjustment, anti-freezing protection and heat exchange efficiency calculation.

  • Trigger temperature abnormality fault alarms to prevent the centrifugal unit from operating at overload and the pipes from freezing and cracking.

  • Work in coordination with the unit's PID control logic to stabilize the temperature of the cold water outlet.

Products

Product Parameters

ItemParameter
Model No.HH79NZ031
Sensing ElementStandard Carrier NTC Thermistor
Resistance @25℃10KΩ ±1%
B Value3950K
Probe Length3 inch stainless steel sealed tube
Measuring Range-40℃ ~ 105℃
Accuracy±0.3℃ within 0~90℃ working range
Cable Length20ft 3inch complete grey silicone harness
Wire Core2-core red/black bare wire ends, no plug
Probe Seal GradeIP68 fully waterproof immersion design
Ambient ResistanceOil-proof, vibration-resistant, anti-interference
Compatible UnitCarrier 19XL, 19XR, 19XRV centrifugal chillers


Products

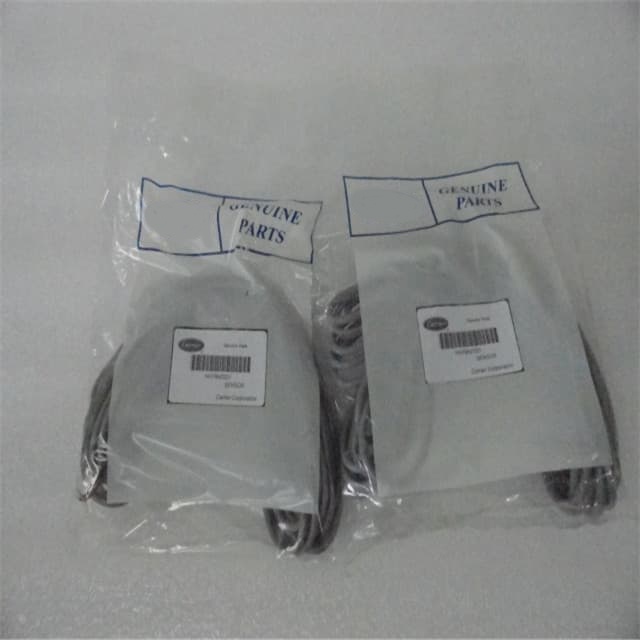

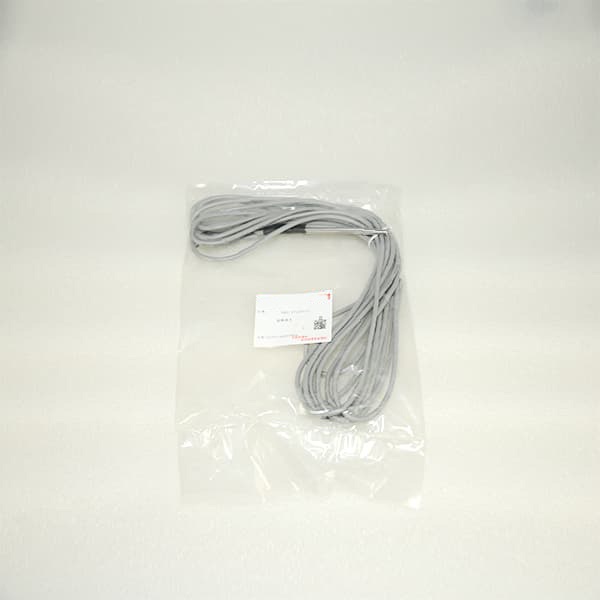

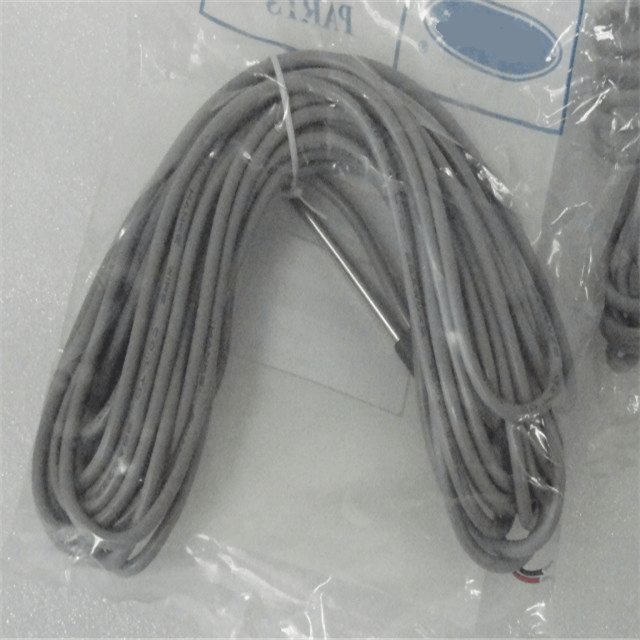

Product Display

CARR*IER HH79NZ031 Temperature Sensor For Centrifugal Chiller

CARR*IER HH79NZ031

CARR*IER HH79NZ031 Temperature Sensor For Centrifugal Chiller

CARR*IER HH79NZ031

CARR*IER HH79NZ031 Temperature Sensor For Centrifugal Chiller

CARR*IER HH79NZ031


CARR*IER HH79NZ031 Temperature Sensor For Centrifugal Chiller


Keywords for CARR*IER Sensor:

carr*ier sensor,carr*ier transducer,carr*ier temperature sensor,carr*ier high pressure switch,carr*ier pressure transducer,carr*ier temp sensor
